Parts List:
-
Brick 2 x 2 (2)
-
Electric Brick 2 x 2 x 2/3 with Wire End (2)
Notes
-

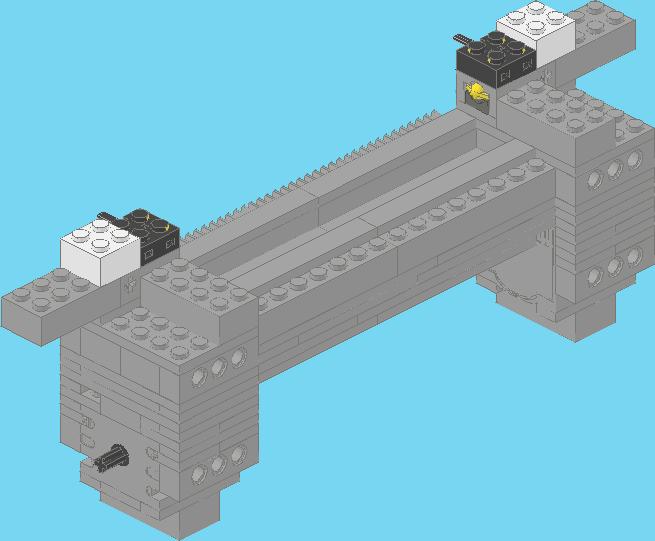

Like before, point the "electric bricks" the way that they
are shown in the diagram. Sure, it doesn't matter with touch sensors,
but it helps keep all of the wires going one direction, making it easier
to connect them (oops, another wiring tip...)
