JF Scanner - Car - Step 26
Back to Main Page
<< Back to Step 25
Go to Step 27 >>

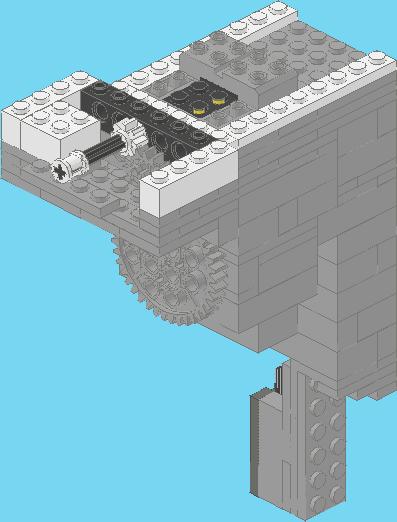

Front View
Detail View
Parts List:
-
Brick 1 x 4 (2)
-
Brick 2 x 2 (1)
-
Plate 1 x 6 (1)
-
Plate 1 x 8 (2)
-
Technic Axle 5 (1)
-
Technic Brick 1 x 6 (1)
-
Technic Bush (1)
-
Technic Gear 8 Tooth (1)
Notes:
-
The top of these bricks should be one layer higher
than the plates in the back.
-
Alright, this is a little confusing. See that axle
sticking off into space? That's a 5-length axle. The end of
it goes into the Technic brick. Then, there's an 8-tooth gear that
meshes with the 16-tooth gear below it. (For more clarification,
look at the Detail picture) You can leave that bush off
of the end for now, though: you'll be putting a rotation sensor on in the
next step.
-
Figured out what that floating plate is for yet? Don't
worry, I'll show you in the next step.
